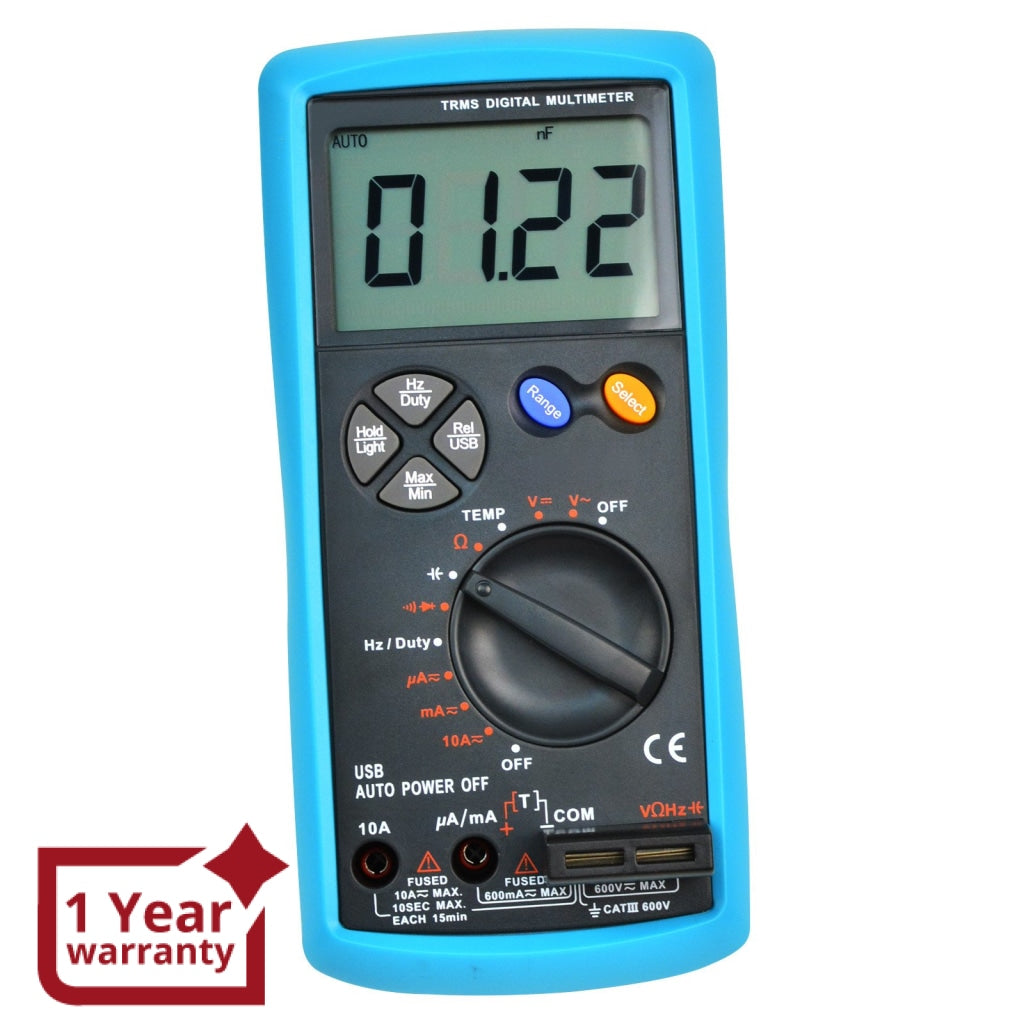

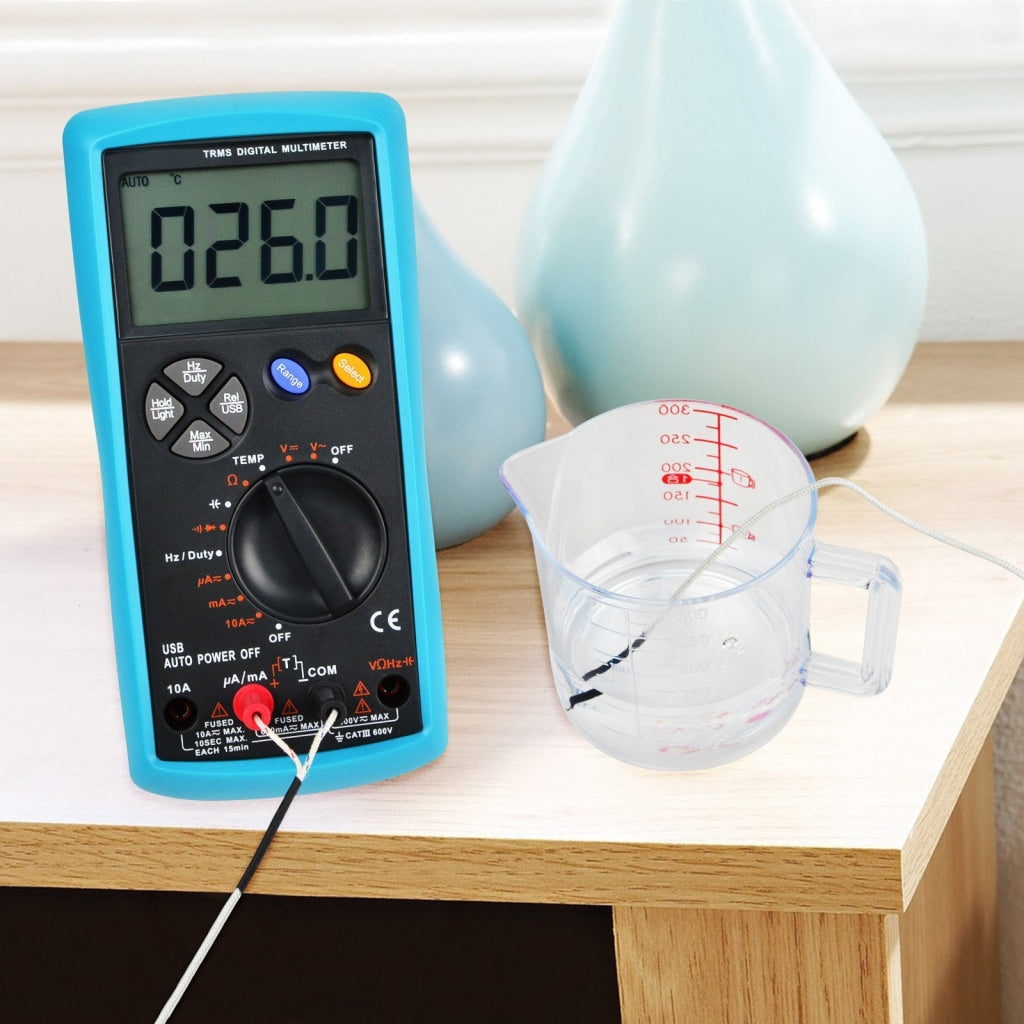

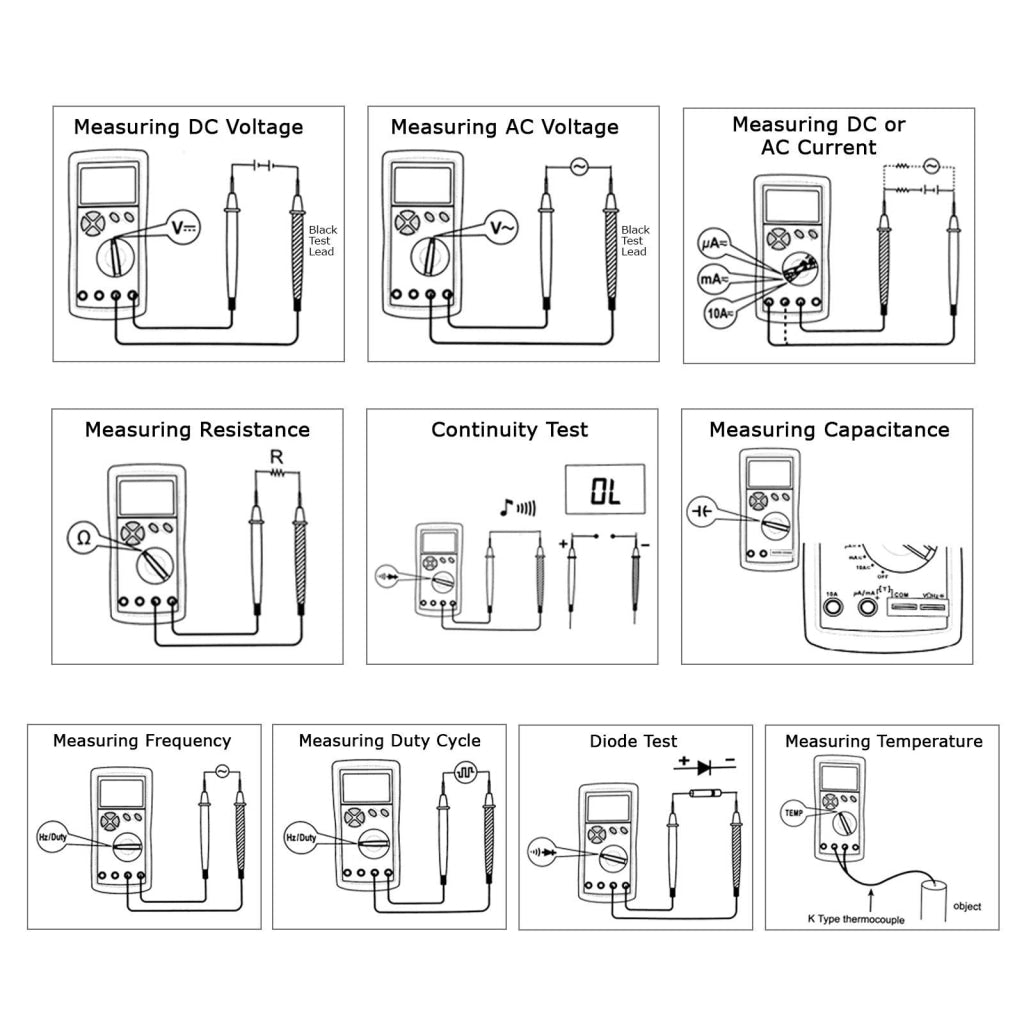

This multimeter can measure DC/AC Voltage, DC/AC Current, Resistance, Capacitance, Frequency, Diode, Temperature(°C/°F), Continuity and Duty Cycle. It has USB2.0 standard interface
It has an CE Marking approval from European Directives for complying with the essential health and safety requirements.

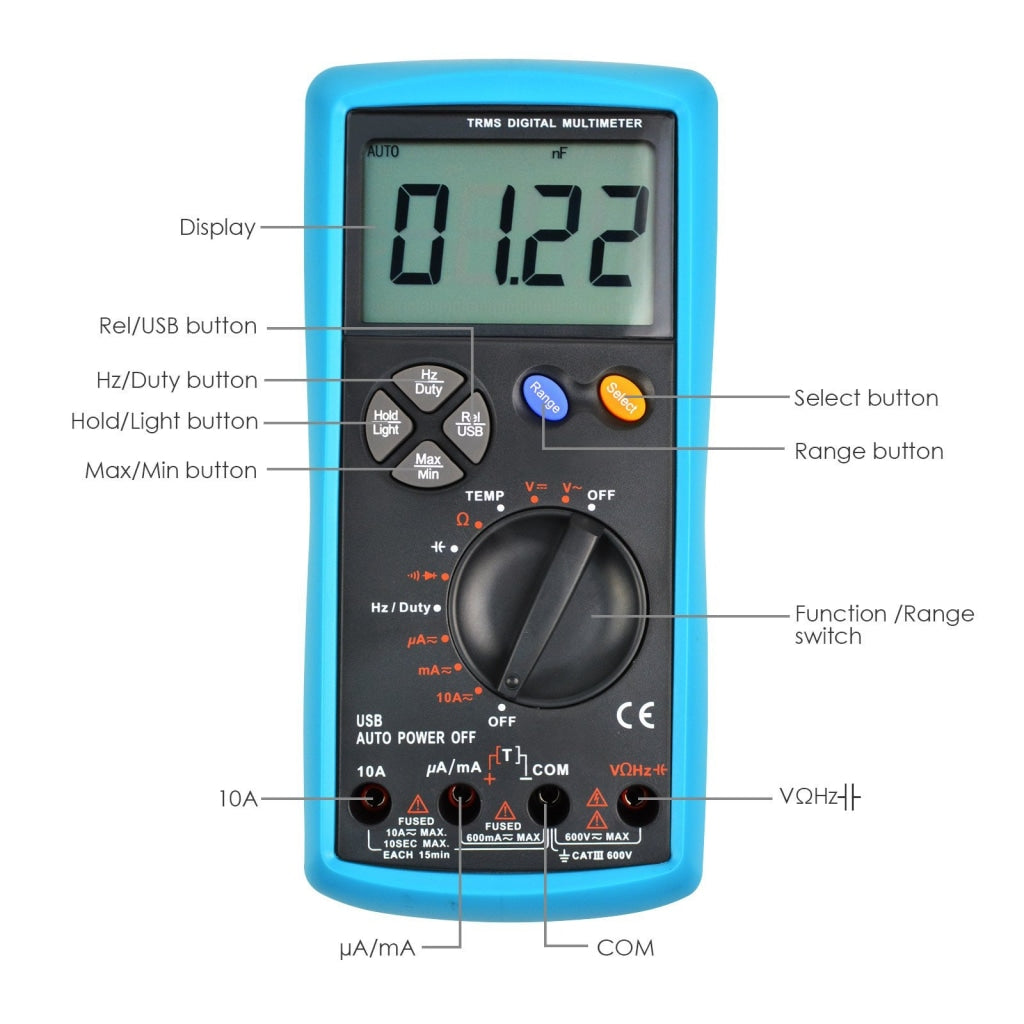

Features:
- 3 5/6- digit Tru RMS
- Measures True-RMS AC Voltage and True-RMS AC Current
- Manual range and auto-range mode

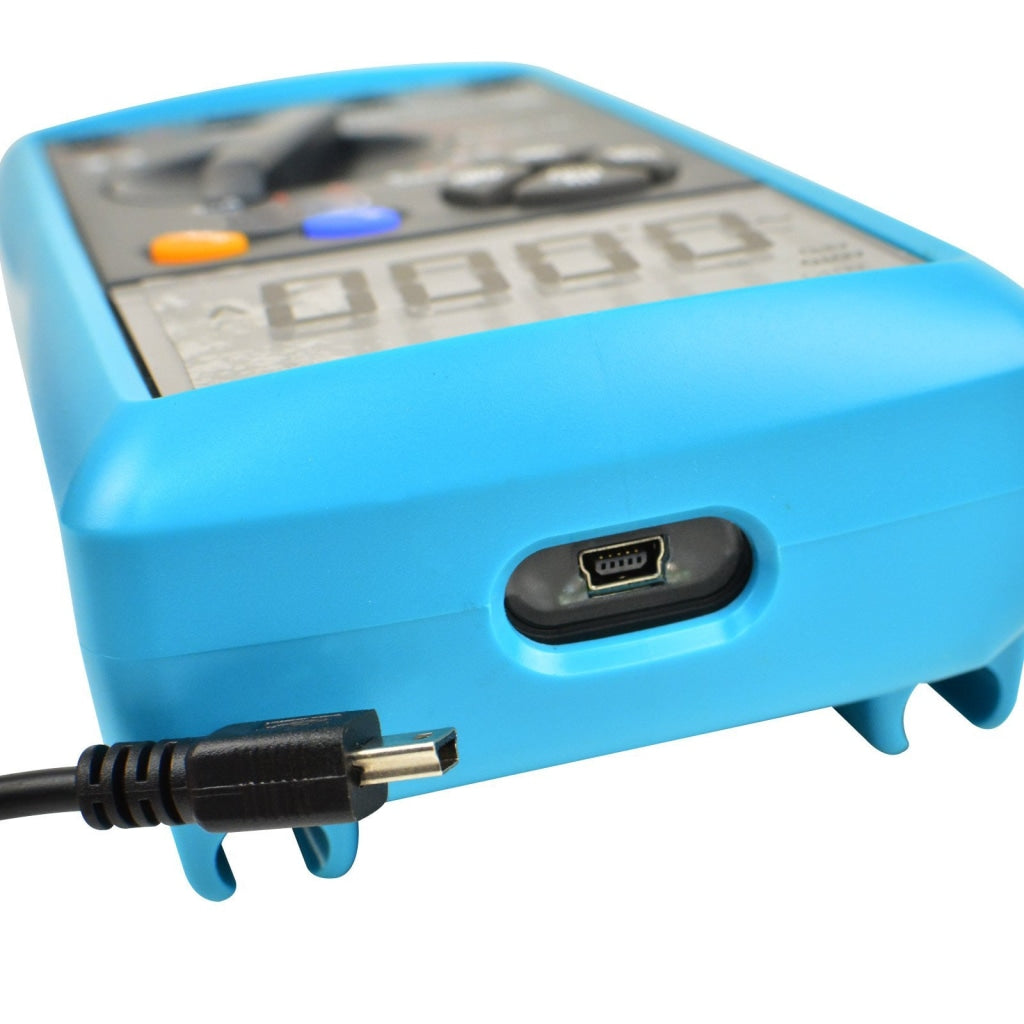

- Meter to computer transfer of measured readings via USB port
- With Analog Bar Graph and Reading Unit Indication
- Auto Polarity Indication
- Data Hold
- Backlight Functions
- Overload Protection for all ranges
- Low battery indication
- Relative measurement
- Max/Min value recording
- Auto and Manual power off
- Easy to operate and ideal measurement tool
- Designed according to IEC-61010 with CAT III 600V and pollution degree 2
- Conforms to EU Union directives
- With UL&GS Marking
- Application:
- measurements on distribution boards, circuit breakers, wiring including cables, bus-bars, junction boxes, switches, socket-outlets in the fixed installation, and equipment for industrial use and some other equiment like stationary motors with permanent connection to the fixed installation.

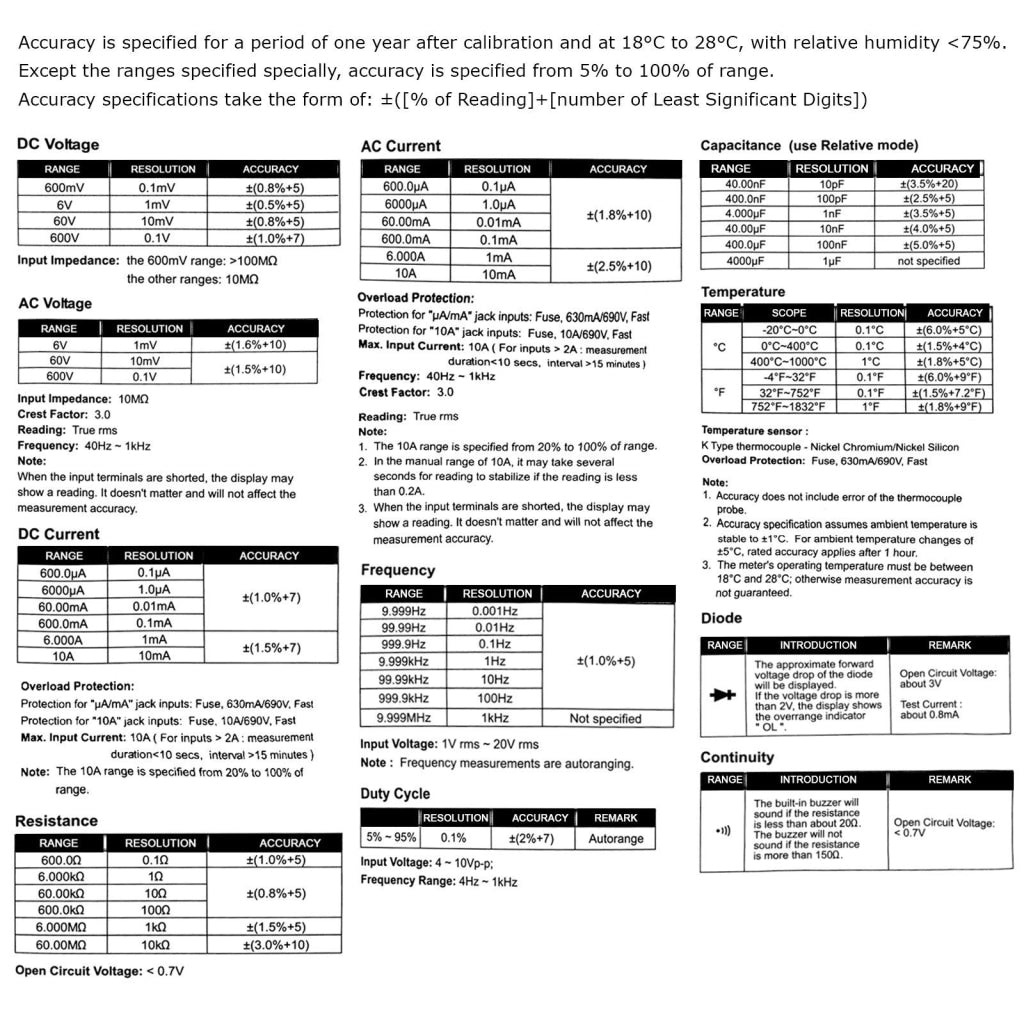

Specifications:

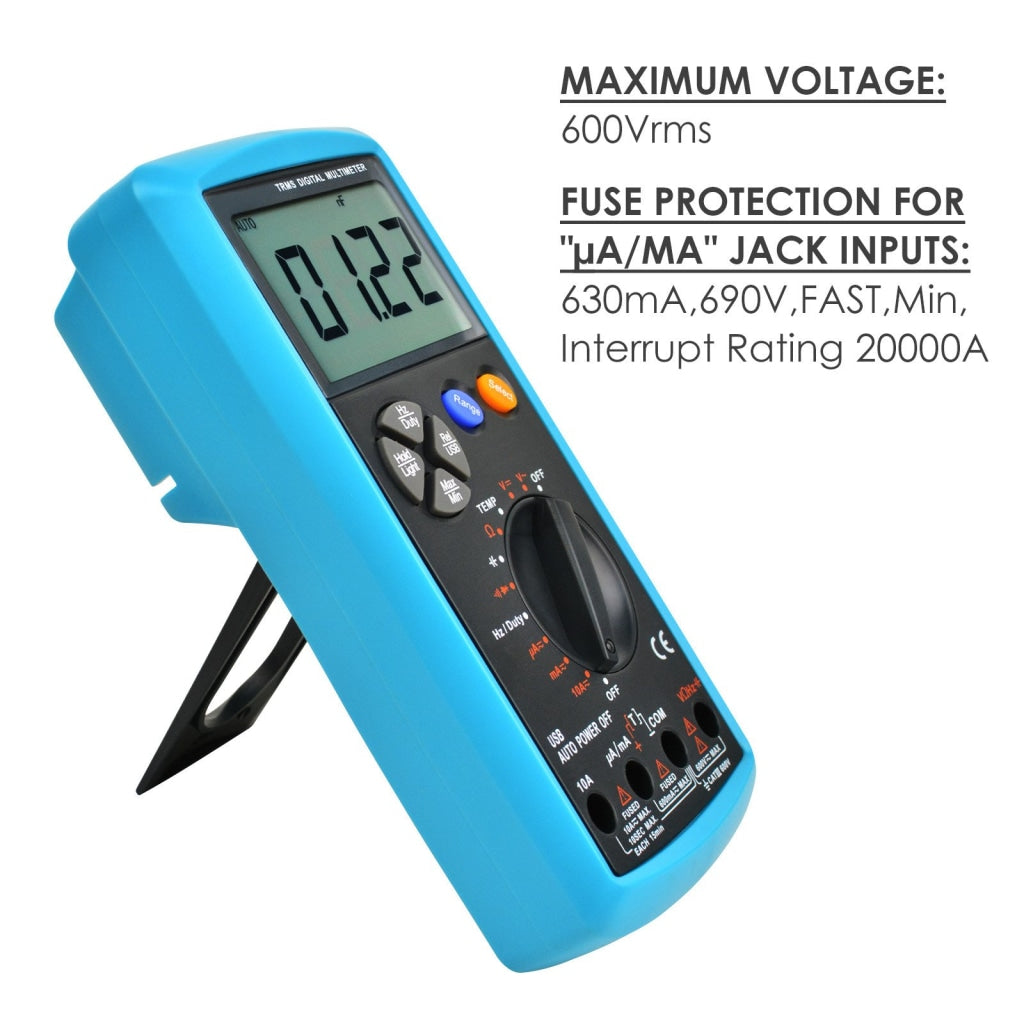

- Maximum Voltage between any Terminal and Earth Ground : 600Vrms
- Fuse Protection for "μA/mA"Jack Inputs:
- 630mA,690V,FAST,Min,Interrupt Rating 20000A
- Fuse Protection for "10A"Jack Inputs:
- 10A,690V,FAST,Min,Interrupt Rating 20000A
- Display:LCD, with a max,reading of 9999
- Overrange Indication:"OL"shown on the display
- Negative Polarity Indication:"-" shown on the display automatically
- Sampling Rate: about 3 times/sec
- Operating Environment: 0~40 °C,<75%RH
- Temperature Coefficient:
- 0.2 x (specified accuracy)/°C(<18 °C or >28°C)
- Storage Environment: -30~60 °C,<85%RH
- Operating Altitude:0-2000 meters
- Power : 1 x 9V Battery
- Size:185 x 86 x 44mm
- Weight: about 380g (including battery and the holster)

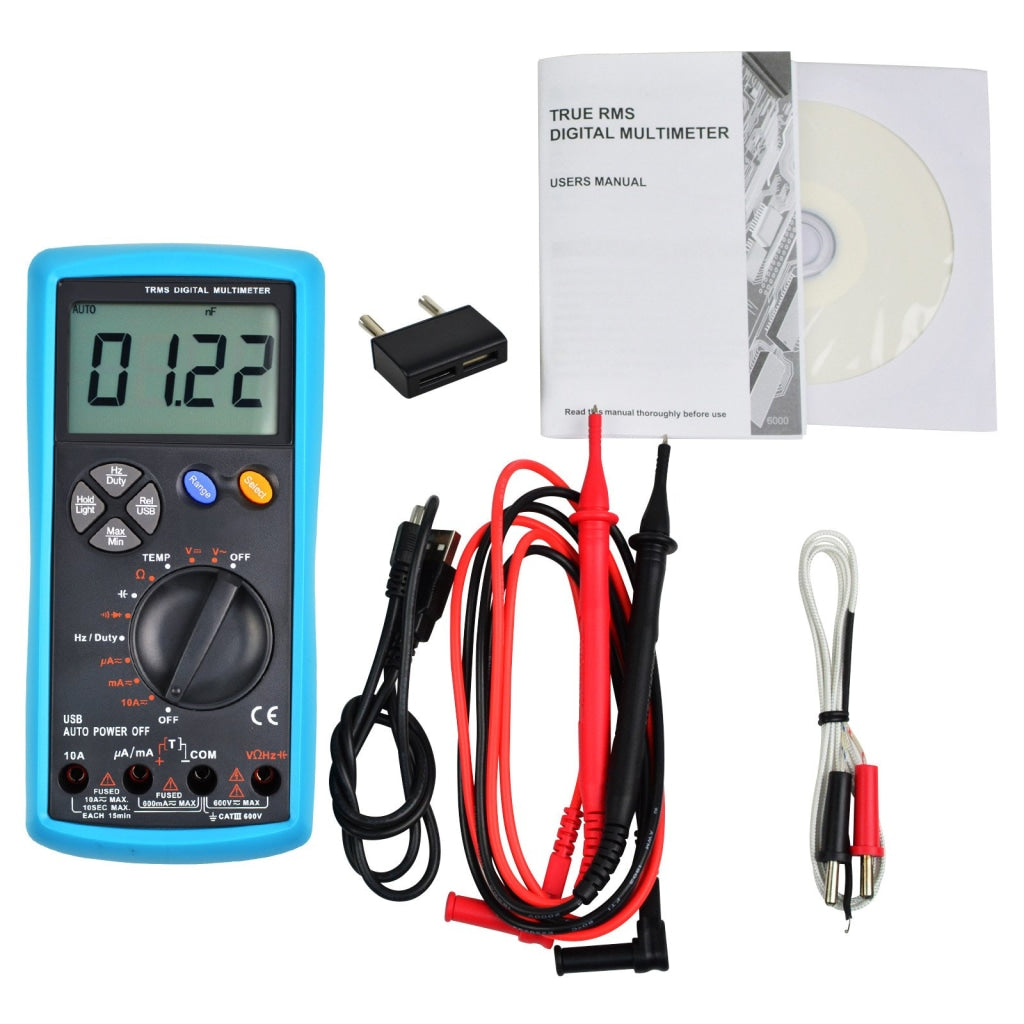

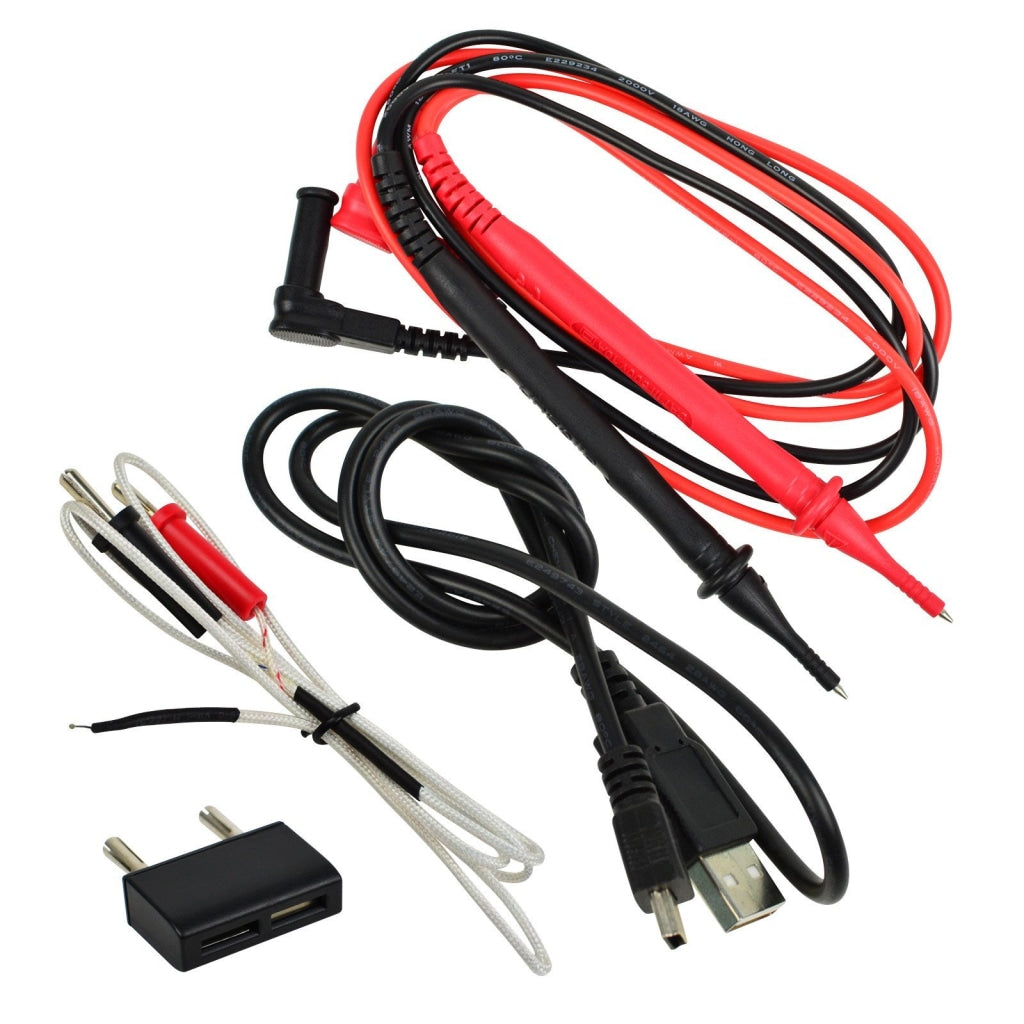

Set Includes:
- 1 x True RMS Multimeter

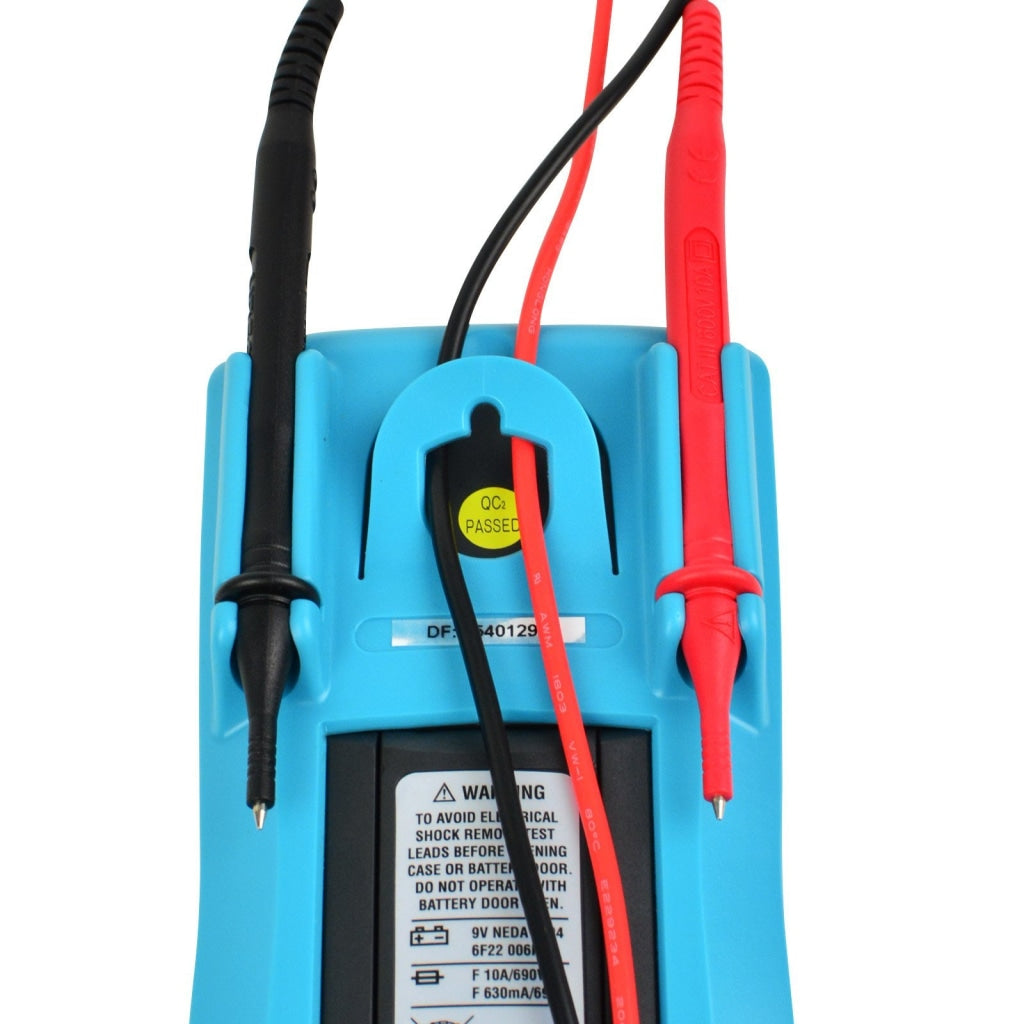

- 1 x Test Leads (pair)
- 1 x K-Type Thermocouple
- 1 x Transistor Test Socket
- 1 x USB cable
- 1 x CD Software
- 1 x 9V Battery (FREE)
- 1 x English Manual
- Standard Blister Packaging
