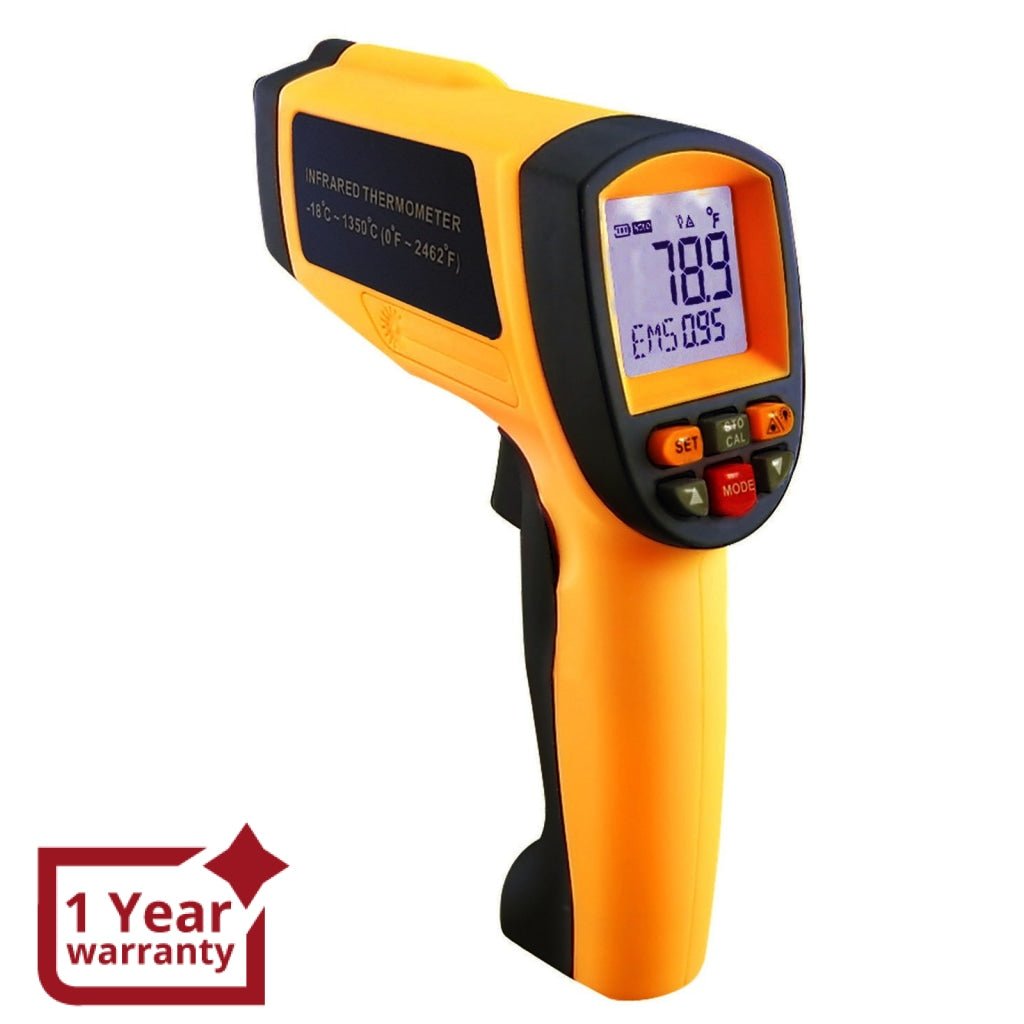

The Professional Digital Infrared Thermometer is a reliable device used for measuring temperature of the object's surface, which is applicable for various hot, hazardous or hard-to-reach objects without contact safely and quickly. J ust aim the Laser Point , press the button, and read the temperature in less than a second. It makes aiming even more precise.

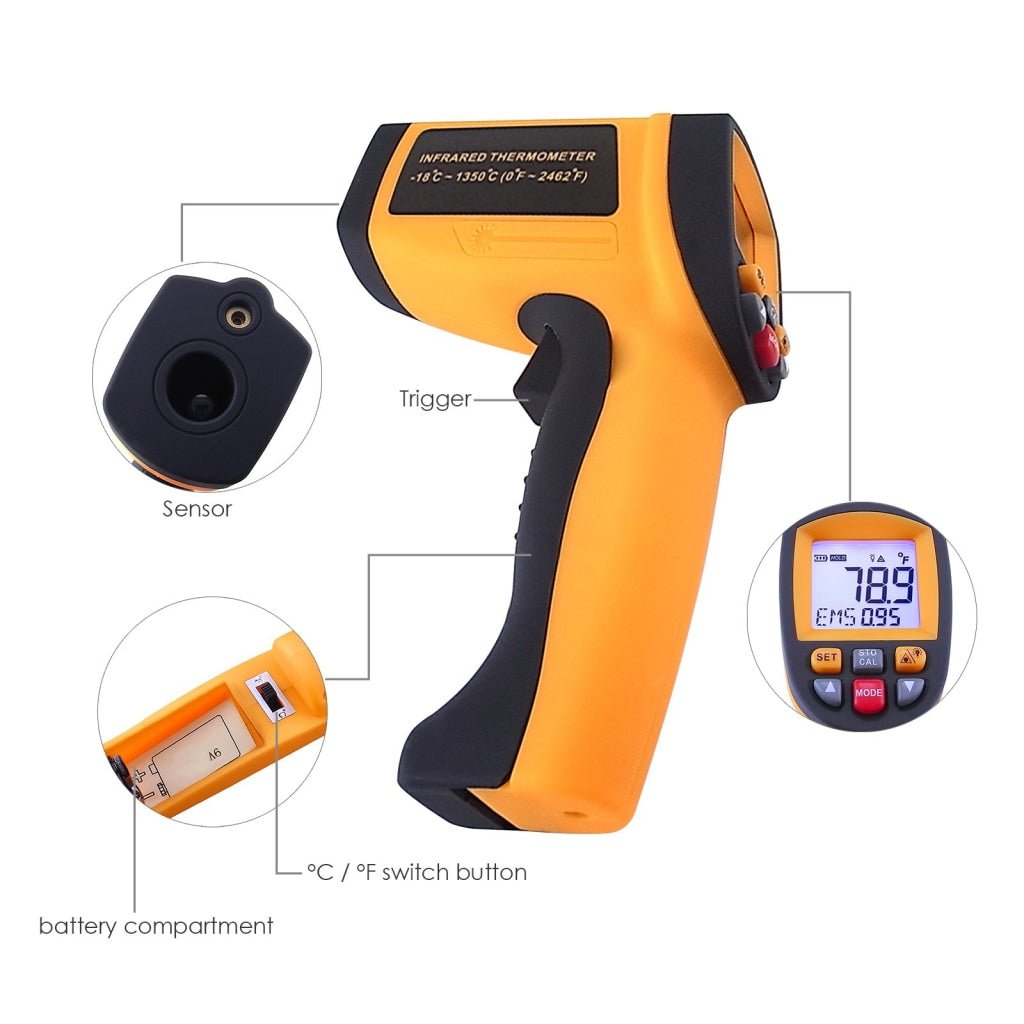

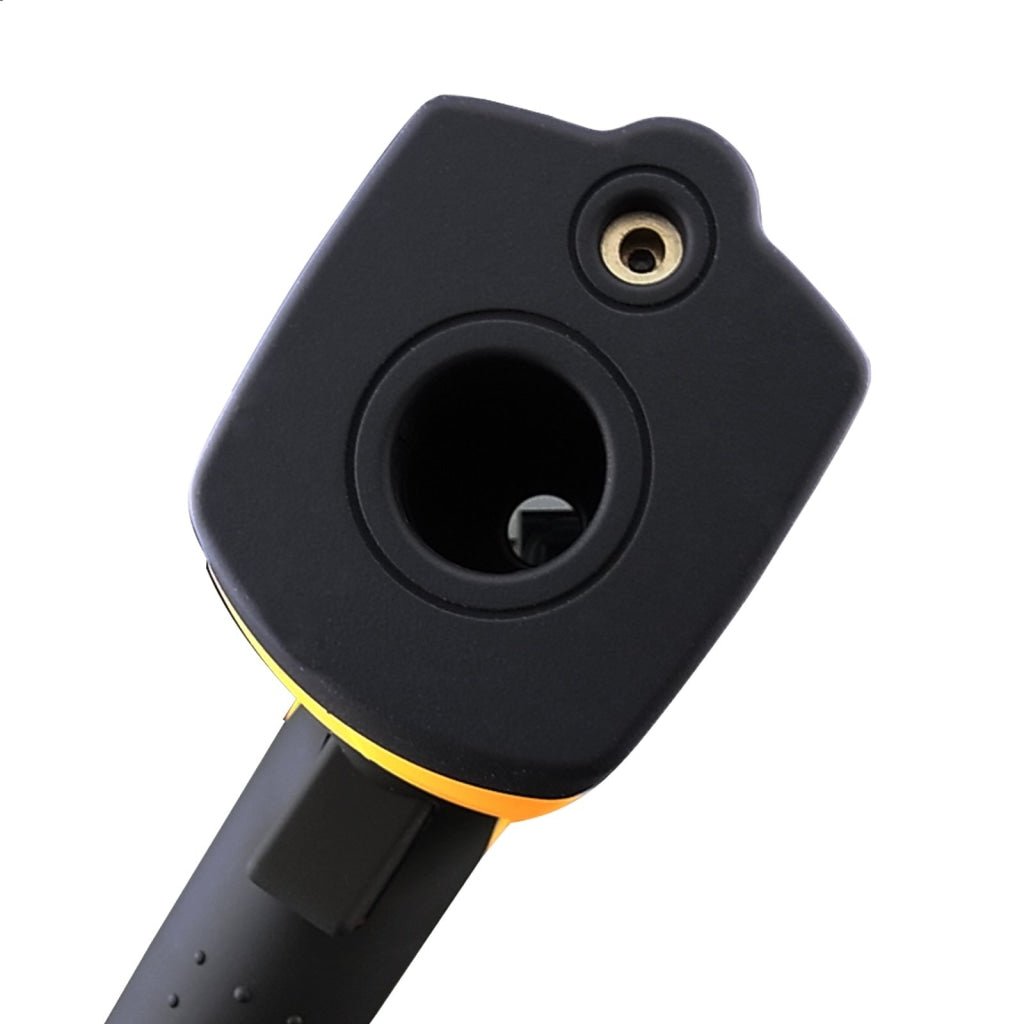

It has Ultra High Distance to Spot Ratio (50:1) and much wider Temperature Range from -18 to 1350°C (0 ~ 2462°F) . The thermometer also featured with Backlight LCD, High Accuracy, Fast Responding Time (0.5 seconds) , User Adjustable Emissivity (Preset at 0.95) and Spectral Response from 8 to 14 µm . It also has Optics, Temperature Sensor signal amplifier, Processing circuit that gives the information into a temperature reading which is displayed on the LCD.

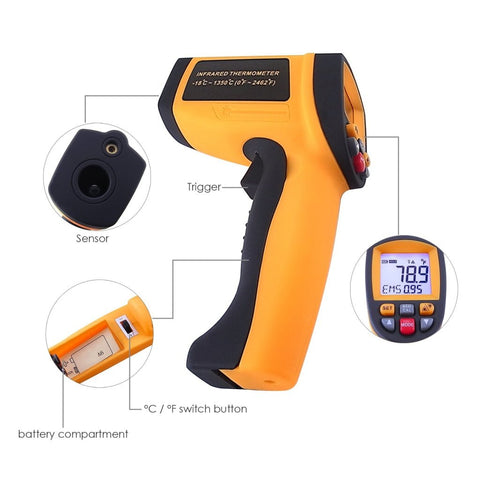

In addition, °C and °F can be easily switch. It also has 12 memories data storage , Maximum, Minimum, Average and Difference temperature functions, Adjustable High and Low Temperature Alarm and battery life indication.
Applications
- Heat ventilation air-conditioning and refrigeration
- Automotive industry
- Food preparation
- Horticulture
- Construction, mechanics
- Electrical & power voltage/current inspection field
- Water treatment and water quality inspection
- Environmental monitoring
- Marine and weather

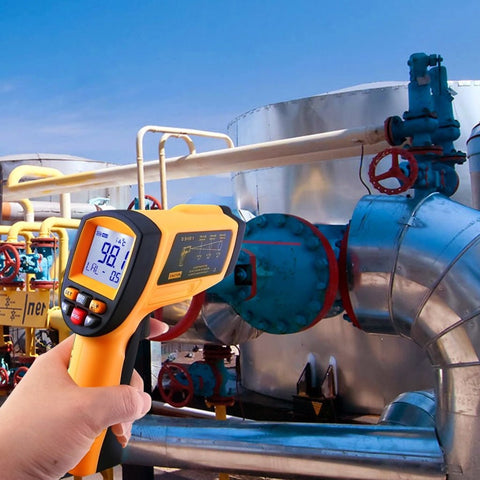

- Gas industry
- Food processing industry
Features
- Memory storage function (up to 12 data)
- Highly accurate and reliable

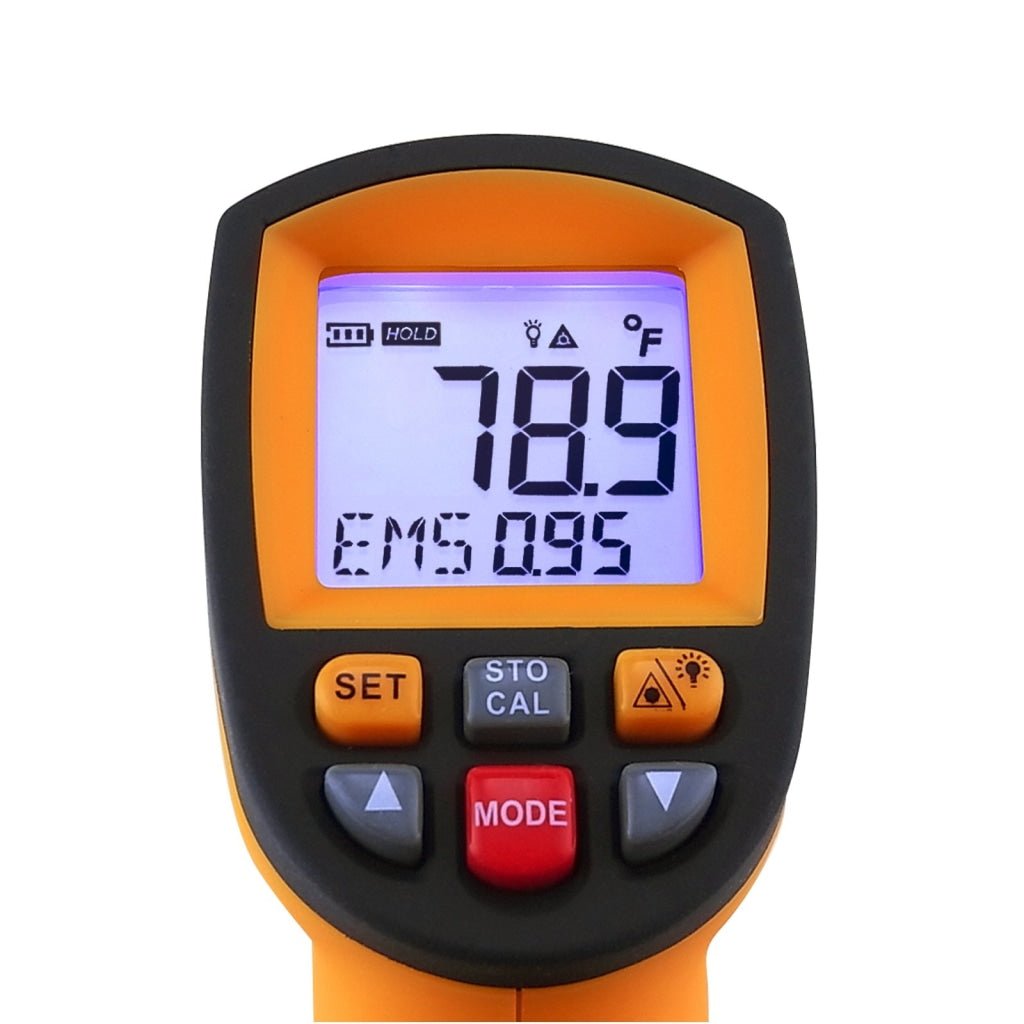

- Large clear LCD display with Backlight
- Auto Power Off
- Data Store/Recall Function
- Data Hold Function
- Access surface temperature in 1 second
- Maximum, Minimum, Average and Difference temperature functions
- Adjustable High / Low Temperature Alarm
- Fast response time (0.5 seconds)
-

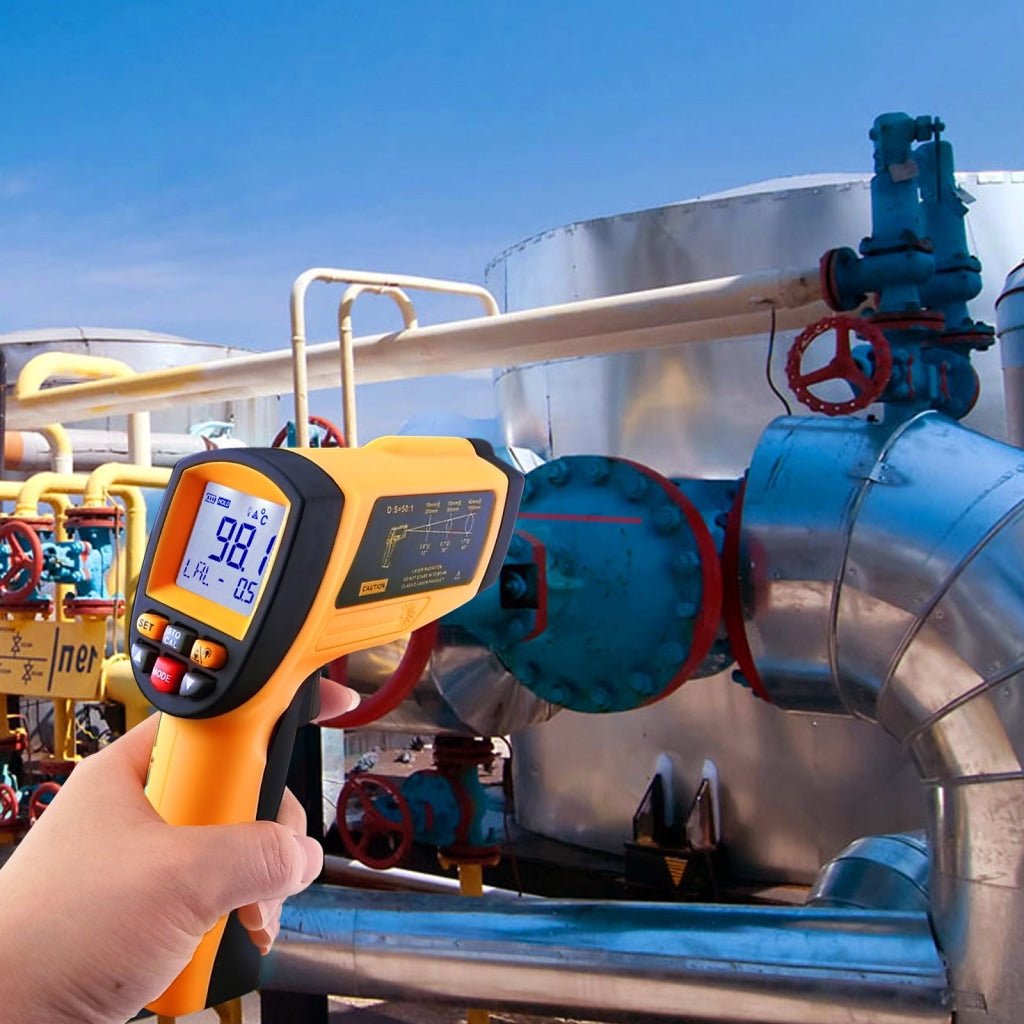

Measure hazardous or inaccessible objects (high-voltage parts)
Specifications

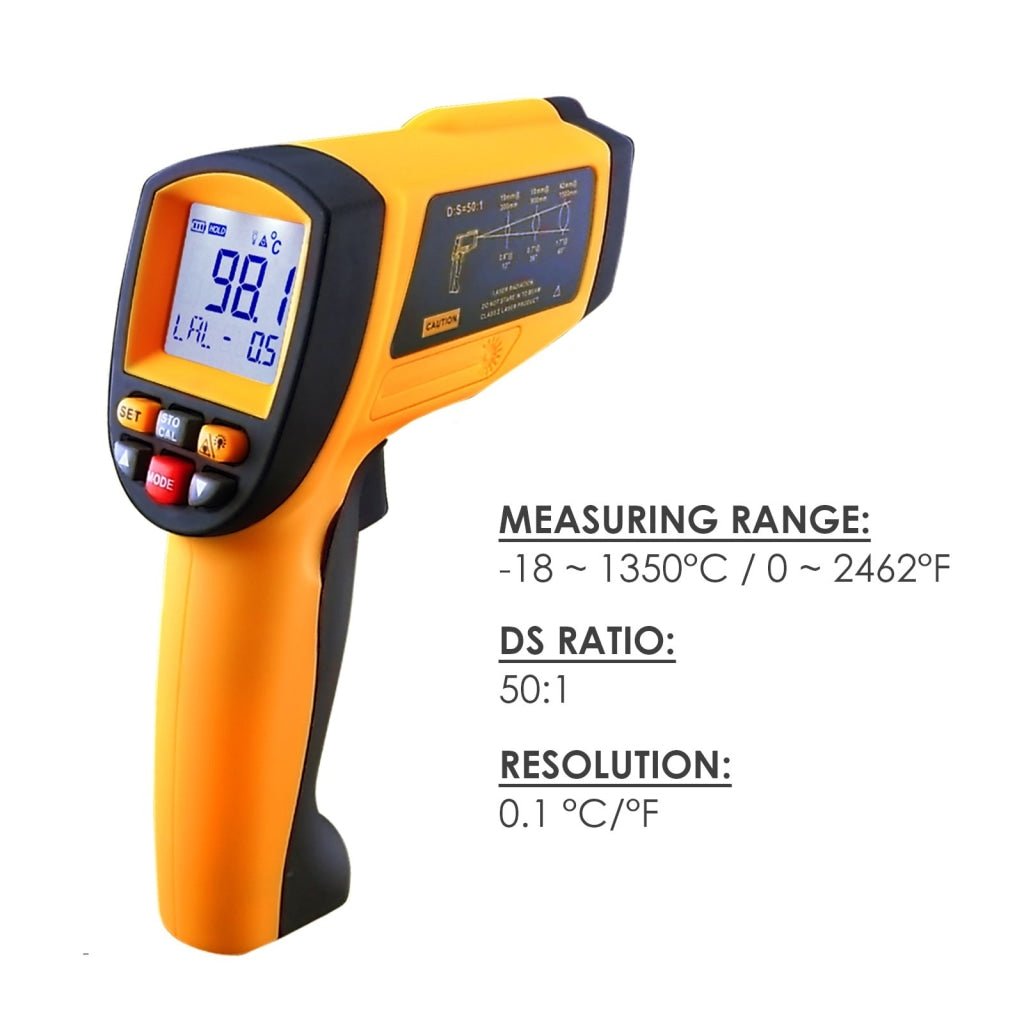

- Measuring Range: -18 ~ 1350°C / 0 ~ 2462°F
-
Accuracy
- 0 ~ 1350°C (32~2462°F): ±1.5°C (±2.7°F) or ± 1.5%
- -18 ~ 0°C (0~32°F): ±3°C (±5°C) or ± 2% whichever is greater
- Distance to Spot Size / DS Ratio: 50:1
- Resolution: 0.1 °C/°F
- Repeatability: 1% of reading or 1°C
- Response Time: 500mSec, 95% response
- Spectral Response: 8~14µm
- Emissivity: User Adjustable and Preset at 0.95
- Laser Power: <1 mW
- Laser Class : Class III
-
Operating Environment Storage Temperature: -20~60°C (-4~140°F)
- Temperature: 0~40°C (32~104°F)
- Humidity: 10~95% R.H. non-condensing at up to 30°C (86°F)
- Low battery indication (3 levels)

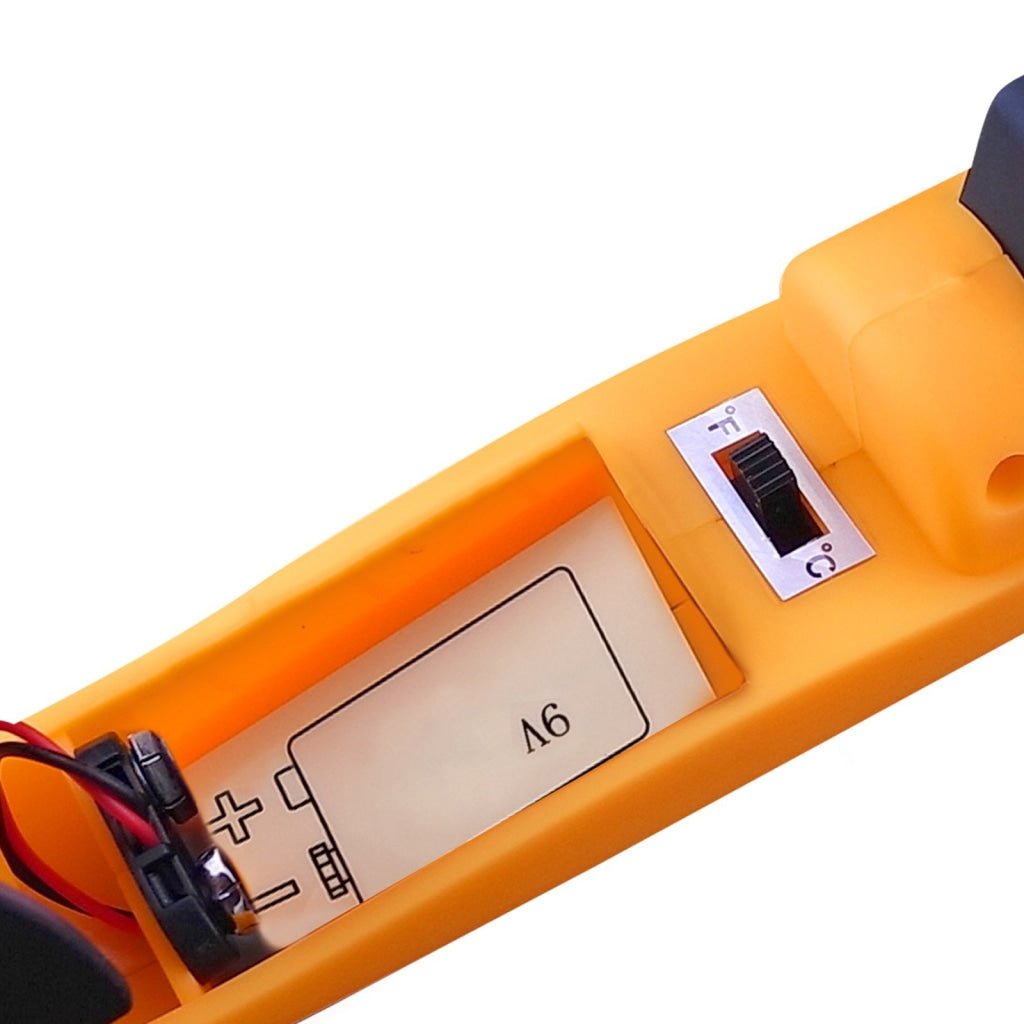

- Power: 1 x 9V Battery (included)
- Typical Battery Life (Alkaline): 12 hours (Laser), 22 hours (non-Laser)

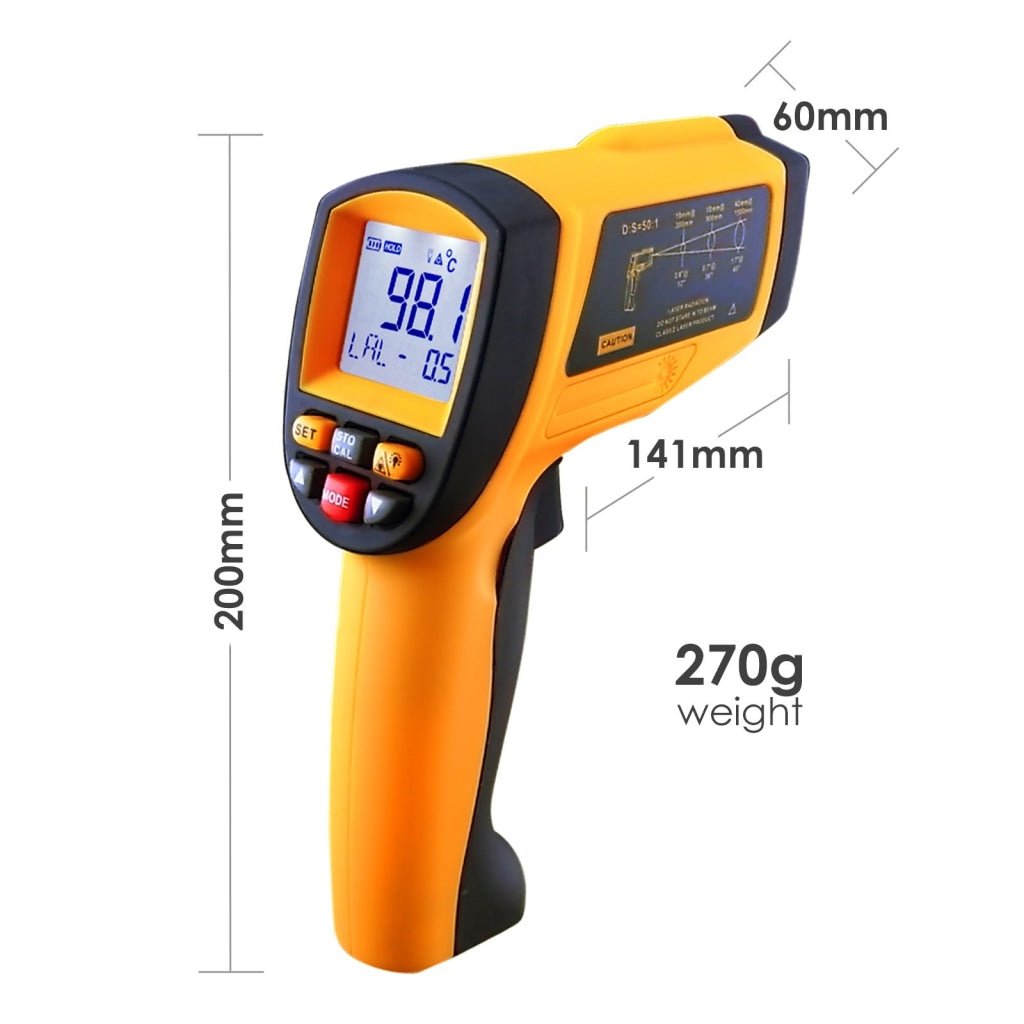

- Item Size: approx. 141 x 60 x 200mm
- Item Weight: approx. 270g
Approximate Emissivity
|
|
Material
|
Emissivity
|
**Aluminum |
**0.30
|
**Brass , Lead |
**0.50
|
**Basalt , Iron |
**0.70
|
**Steel |
**0.80
|
**Carbon , Glass (plate) |
**0.85
|
**Brick , Frozen Food , Sand , Snow |
**0.90
|
**Dirt , Oil , Textiles , Wood |
**0.94
|
**Hot Food , Paint , Water |
**0.93
|
**Asphalt , A sbestos, Ceramic , Concrete , Copper , |
**0.95
|
**Ice , Limestone , Skin |
**0.98
|

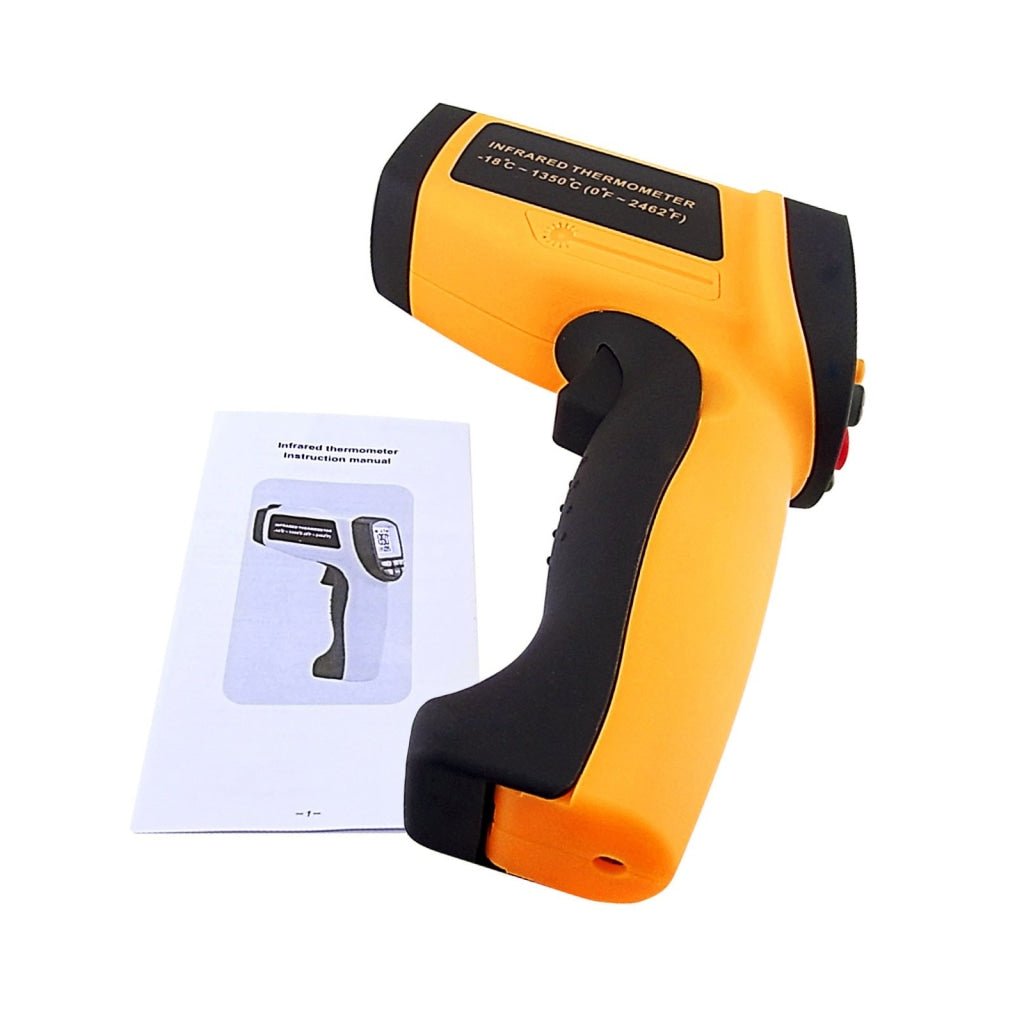

Set Includes
- 1 x Professional Infrared Thermometer
- 1 x 9V Battery
- 1 x Instruction Manual
- Standard Packaging Box
